1987 Honda CB450S

  • ENGINE
    • Engine: Air cooled, parallel twin cylinder, four stroke, SOHC, 3 valves per cylinder, 360° crankshaft and twin balance-shafts
    • Displacement: 447cc (27 cu. in.)
    • Bore and Stroke: 75 X 50.6mm
    • Compression Ratio: 9.1:1
    • Fuel Delivery: Two 30mm Keihin CV
    • Ignition: CDI
    • Starter: Electric
    • Max Power: 45 hp 32.8 KW @ 9000 rpm
    • Max Torque: 33 Nm @ 7500 rpm
  • DRIVETRAIN
    • Transmission: 6-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescopic forks 124.5mm wheel travel
    • Rear Suspension: Swing arm 97mm wheel travel
    • Front Brakes: Two 260mm disc 2 piston calipers
    • Rear Brakes: 140mm Drum
    • Front Tire: 100/90-18
    • Rear Tire: 110/90-18
  • DIMENSION
    • Dry-Weight: 169 kg (372 lb)
    • Fuel Capacity: 17 Litres (4.5 Gal.)
  • OTHER
    • Sold only in Germany

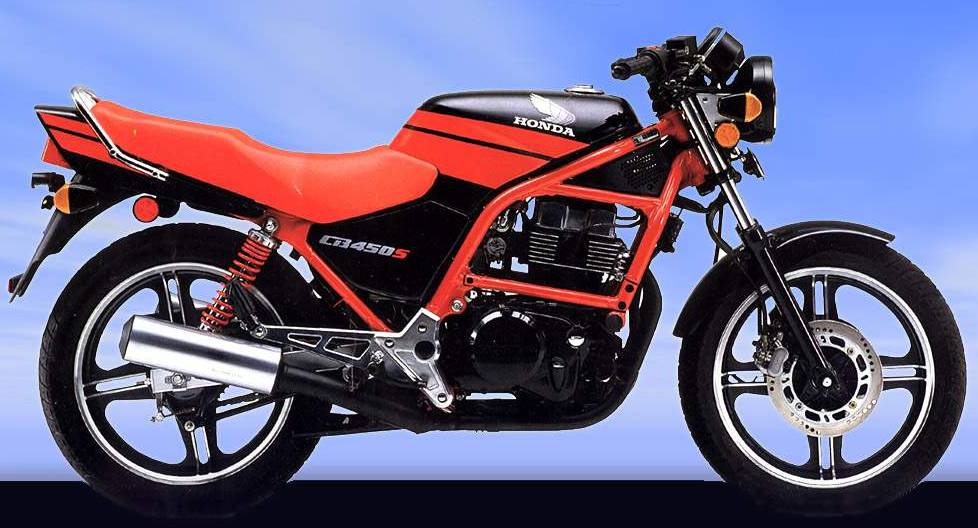

1987 CB450S
1987 CB450S
Click image to enlarge
