Fuel Delivery: Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starter: Electric & kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47.0mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with adjustable spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.3-inch travel
Front Brakes: Single 240.0mm disc with twin-piston caliper
Fuel Delivery: Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starter: Electric & kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47.0mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with adjustable spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240.0mm disc with twin-piston caliper
Rear Brake: s: Single 240.0mm disc
Front Tire: 80/100-21
Rear Tire: 110/100-18
DIMENSION
Rake: 27.28 degrees
Trail: 112.8mm (4.4 inches)
Wheelbase: 58.2 inches
Seat Height: 37.9 inches
Ground Clearance: 13.7 inches
Dry Weight: 250 pounds
Fuel Capacity: 2.27 gallons
OTHER
Colors: Red
Model ID: CRF450X

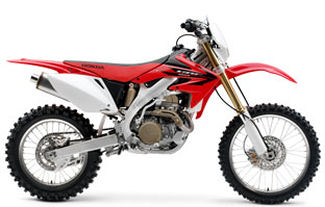

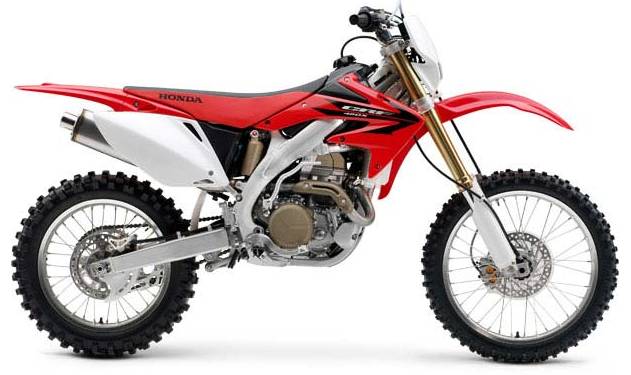

2006 CRF 450X Click image to enlarge

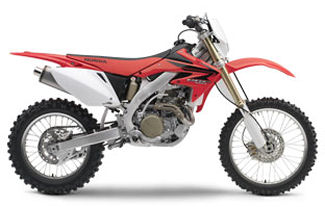

2007 CRF450X
OVERVIEW
If you're going to set out to build the world's best off-road bike, then you'll need world-class inspiration, right? Enter the CRF450X. Bred from the MX Championship-winning CRF450R, this machine takes trail-riding to a whole new level, featuring the world-class four-valve Unicam engine, enduro-spec suspension, wide-ratio gearing, and hassle-free electric start. No wonder one ride is all you'll need to be hooked for life.
Fuel Delivery: Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starter: Electric & kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47.0mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with adjustable spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240.0mm disc with twin-piston caliper
Rear Brake: s: Single 240.0mm disc
Front Tire: 80/100-21
Rear Tire: 110/100-18
DIMENSION
Rake: 27.28 degrees
Trail: 112.8mm (4.4 inches)
Wheelbase: 58.2 inches
Seat Height: 37.9 inches
Ground Clearance: 13.7 inches
Dry Weight: 250 pounds
Fuel Capacity: 2.27 gallons
OTHER
Colors: Red
Model ID: CRF450X
2007 CRF450X

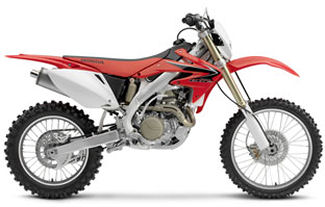

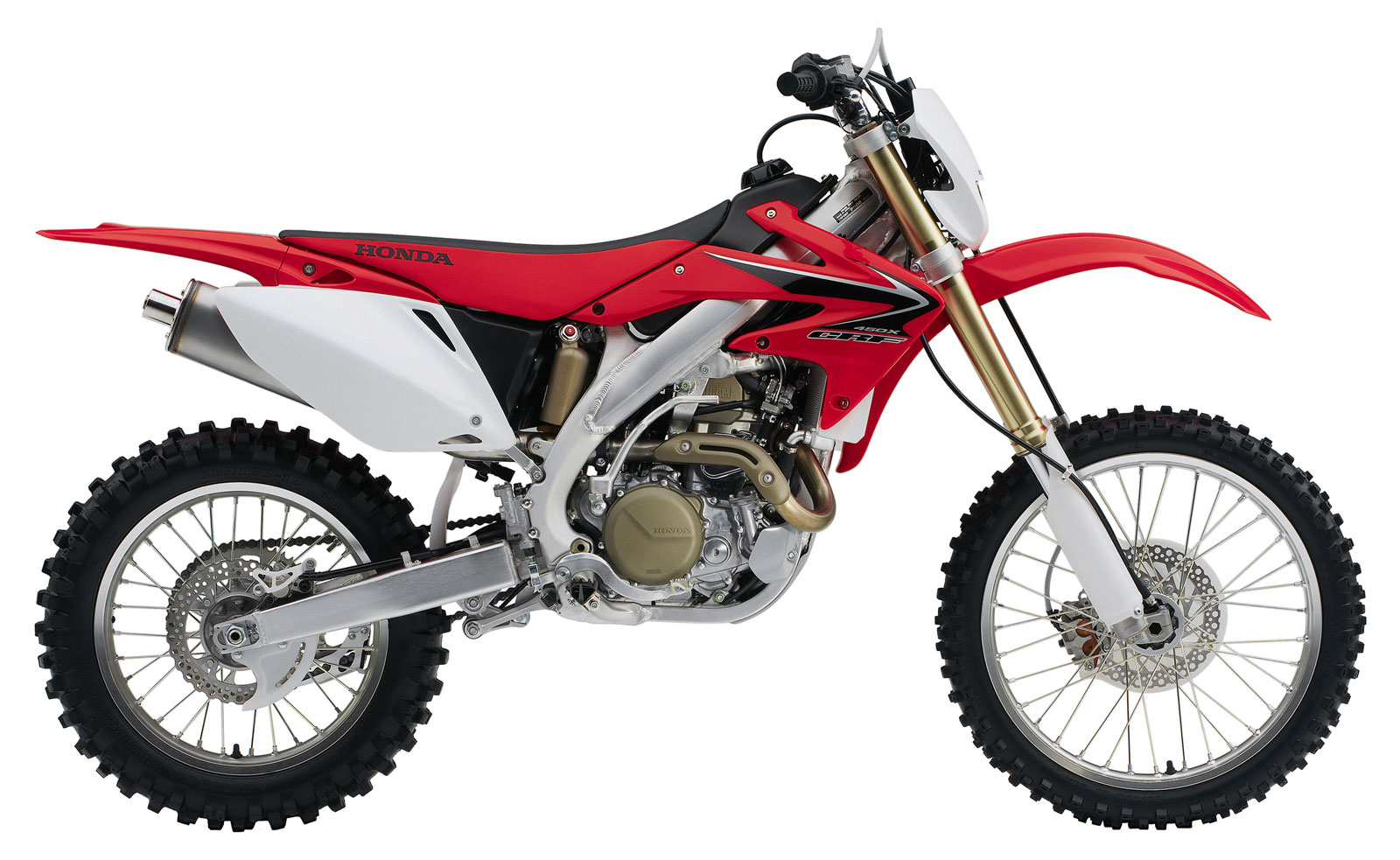

2008 CRF450X
OVERVIEW
After winning every Baja race it's entered, the CRF450X has established its racing cred -- and then some. Hands down, it's the best big-bore trail bike ever built. And this year, it gets even better, with fine-tuning that includes a new Honda Progressive Steering Damper, chassis upgrades, and a slimmer fuel tank. Call it perfection, improved.
Fuel Delivery: Keihin 40mm flat-slide carburetor with Throttle Position Sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starting: Electric and kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension: Pro-Link Showa single shock with adjustable spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Front Brake: Single 240mm disc with twin-piston caliper
Rear Brake: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 110/100-18
DIMENSION
Wheelbase: 58.2 inches
Rake: 27.35 degrees
Trail: 117 mm (4.6 inches)
Seat Height: 37.9 inches
Ground Clearance: 13.6 inches
Fuel Capacity: 1.9 gallons
Curb Weight: 269 lbs (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Delivery: Keihin 40 mm flat-slide carb with throttle position sensor
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain, 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47 mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustment; 315 mm (12.4 in.) travel
Rear Suspension: Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustment, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 313 mm (12.3 in.) travel
Tires: 80/100 - 21 front; 110/100 - 18 rear
Brakes: Front 240 mm disc with dual-piston caliper; rear 240 mm disc
DIMENSION
Ground Clearance: 346 mm (13.6 in.)
Seat Height: 963 mm (37.9 in.)
Wheelbase: 1,480 mm (58.3 in.)
Curb Weight: 122 kg (269 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 7.2 litres, including 1.6-litre reserve
OTHER
Colour: Extreme Red
Warranty: No warrranty
MSRP: $8,999
2011 CRF450X Click image to enlarge

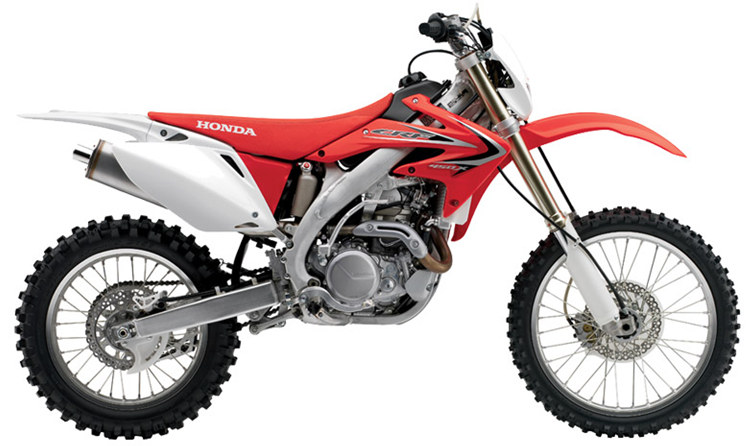

2012 CRF450X
ENGINE
Engine Type: Type Liquid-cooled 4-stroke 4-valve SOHC single
