1993-94 Honda CB500E

  • ENGINE
    • Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
    • Displacement: 494cc (30.1 cid)
    • Bore and Stroke: 73 x 59 mm
    • Compression Ratio: 10.5:1
    • Fuel Delivery: Two 32mm Keihin CV Carburetors
    • Ignition: CDI
    • Starter: Electric
    • Max Power: 58 hp 42.3 kW @ 9500 rpm
    • Max Torque: 47 Nm @ 8000 rpm
  • DRIVETRAIN
    • Transmission: 6-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37mm Telescopic forks
    • Rear Suspension: Twin shock adjustable.
    • Front Brakes: Two 296mm discs 2 piston caliper
    • Rear Brakes: 160mm drum
    • Front Tire: 110/80-17
    • Rear Tire: 130/80-17
  • DIMENSION
    • Seat Height: 775 mm (30.5 inches)
    • Dry-Weight: 170 kg (374 lb)
    • Fuel Capacity: 18 Litres (4.75 Gal)
  • OTHER
    • Fuel Consumption: 5.5 L/100km (42.6 mpg)
    • Standing quarter Mile: 13.1 sec / 156.0 km/h (96.9 mph)
    • Top Speed: 186.4 km/h (115.8 mph)

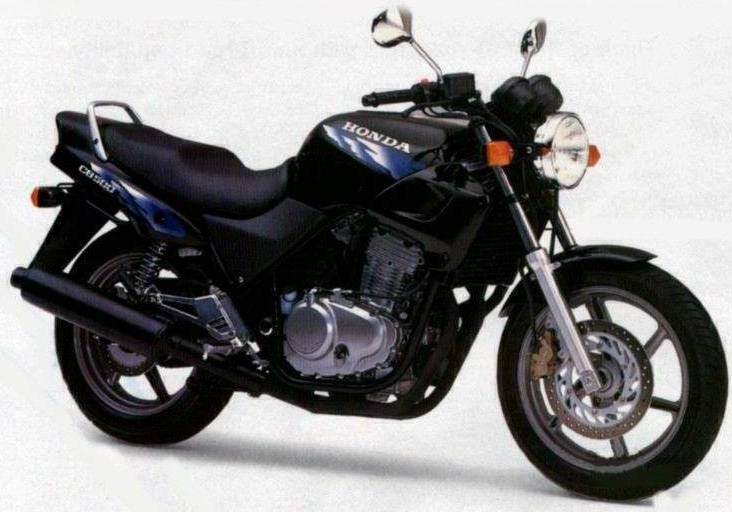

1994 CB500E
1994 CB500E
Click image to enlarge
1994 CB500E
1994 CB500E
Click image to enlarge

1995-96 Honda CB500E

  • ENGINE
    • Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
    • Displacement: 494cc (30.1 cid)
    • Bore and Stroke: 73 x 59 mm
    • Compression Ratio: 10.5:1
    • Fuel Delivery: Two 32mm Keihin CV Carburetors
    • Ignition: CDI
    • Starter: Electric
    • Max Power: 58 hp 42.3 kW @ 9500 rpm
    • Max Torque: 47 Nm @ 8000 rpm
  • DRIVETRAIN
    • Transmission: 6-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37mm Telescopic forks
    • Rear Suspension: Twin shock adjustable.
    • Front Brakes: Two 296mm discs 2 piston caliper
    • Rear Brakes: 160mm drum
    • Front Tire: 110/80-17
    • Rear Tire: 130/80-17
  • DIMENSION
    • Seat Height: 775 mm (30.5 inches)
    • Dry-Weight: 170 kg (374 lb)
    • Fuel Capacity: 18 Litres (4.75 Gal)
  • OTHER
    • Fuel Consumption: 5.5 L/100km (42.6 mpg)
    • Standing quarter Mile: 13.1 sec / 156.0 km/h (96.9 mph)
    • Top Speed: 186.4 km/h (115.8 mph)

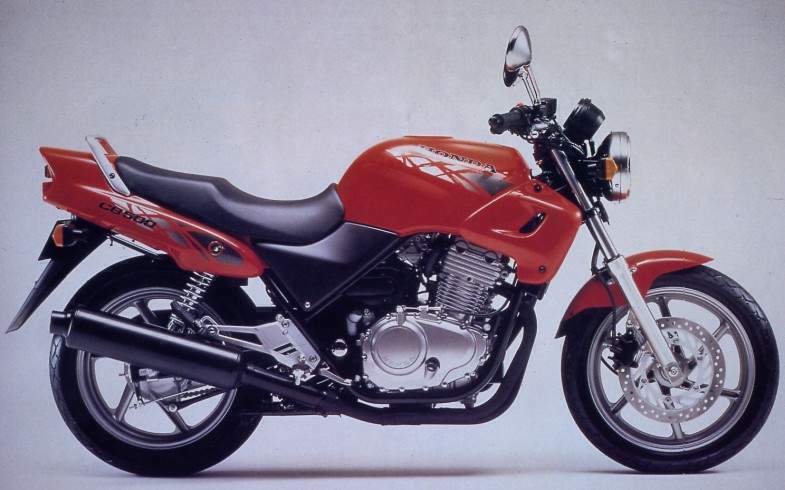

1995 CB500E
1995 CB500E
Click image to enlarge

1998-00 Honda CB500E

  • ENGINE
    • Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
    • Displacement: 494cc (30.1 cid)
    • Bore and Stroke: 73 x 59 mm
    • Compression Ratio: 10.5:1
    • Fuel Delivery: Two 32mm Keihin CV Carburetors
    • Ignition: CDI
    • Starter: Electric
    • Max Power: 58 hp 42.3 kW @ 9500 rpm
    • Max Torque: 47 Nm @ 8000 rpm
  • DRIVETRAIN
    • Transmission: 6-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37mm Telescopic forks, 115mm wheel travel,
    • Rear Suspension: Twin shock adjustable, 117mm wheel travel.
    • Front Brakes: Two 296mm discs 2 piston caliper
    • Rear Brakes: Single 240mm disc 1-piston caliper
    • Front Tire: 110/80-17
    • Rear Tire: 130/80-17
  • DIMENSION
    • Seat Height: 775 mm (30.5 inches)
    • Dry-Weight: 173 kg (381 lb)
    • Fuel Capacity: 18 Litres (4.75 Gal)
  • OTHER

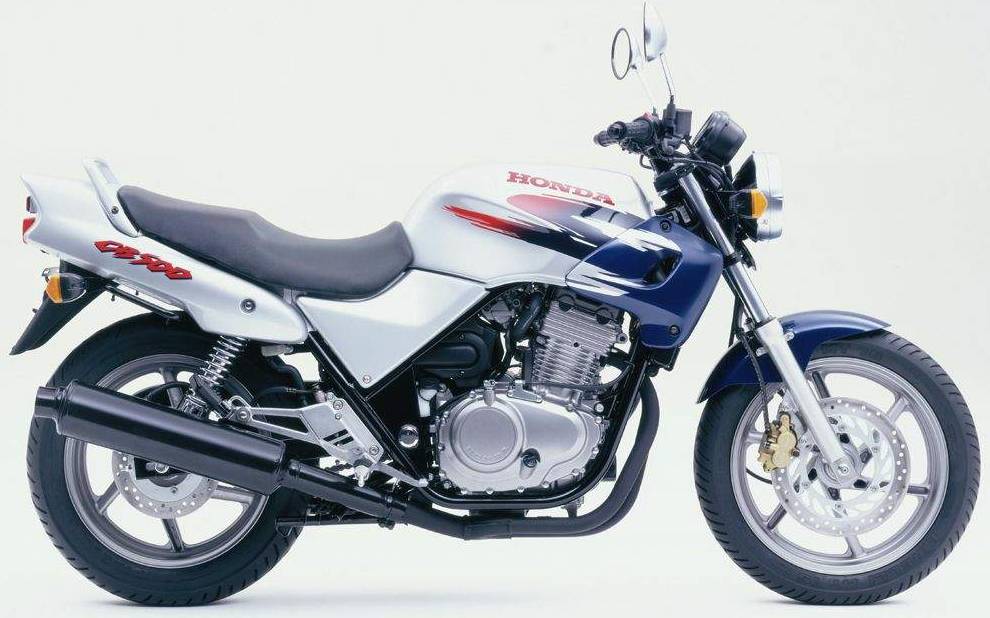

1998 CB500E
1998 CB500E
Click image to enlarge

1901-03 Honda CB500E

  • ENGINE
    • Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
    • Displacement: 494cc (30.1 cid)
    • Bore and Stroke: 73 x 59 mm
    • Compression Ratio: 10.5:1
    • Fuel Delivery: Two 32mm Keihin CV Carburetors
    • Ignition: CDI
    • Starter: Electric
    • Max Power: 58 hp 42.3 kW @ 9500 rpm
    • Max Torque: 47 Nm @ 8000 rpm
  • DRIVETRAIN
    • Transmission: 6-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37mm Telescopic forks, 115mm wheel travel,
    • Rear Suspension: Twin shock adjustable, 117mm wheel travel.
    • Front Brakes: Two 296mm discs 2 piston caliper
    • Rear Brakes: Single 240mm disc 1-piston caliper
    • Front Tire: 110/80-17
    • Rear Tire: 130/80-17
  • DIMENSION
    • Seat Height: 775 mm (30.5 inches)
    • Dry-Weight: 173 kg (381 lb)
    • Fuel Capacity: 18 Litres (4.75 Gal)
  • OTHER
2001 CB500E
2001 CB500E
Click image to enlarge

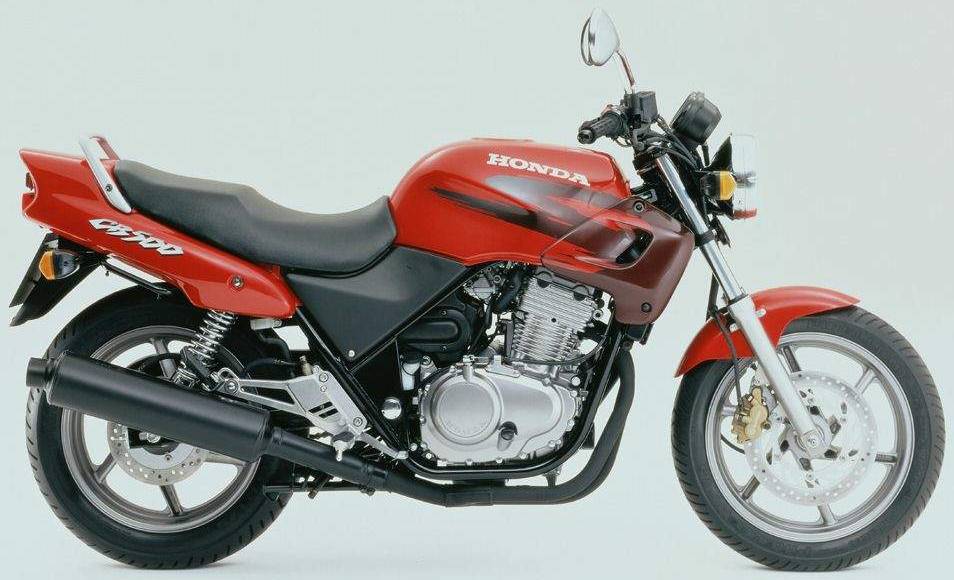

2002 CB500E
2002 CB500E
Click image to enlarge
