1998 Honda CB500S
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valve per cylinder
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks, 115mm wheel travel
- Rear Suspension: Twin shock adjustable, 117mm wheel travel
- Front Brakes: Single 296mm disc 2 piston caliper
- Rear Brakes: Single 240mm disc 1 piston caliper
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Dry-Weight: 179 Kg (394 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER

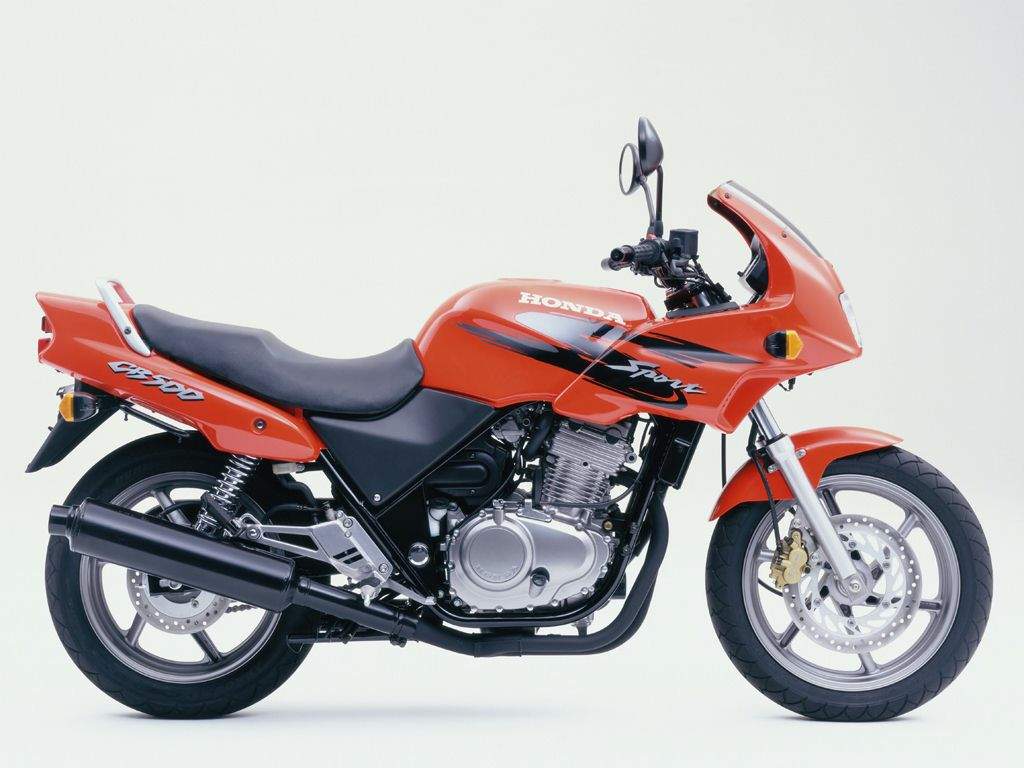

1998 CB500S
Click image to enlarge
1999 Honda CB500S
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valve per cylinder
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks, 115mm wheel travel
- Rear Suspension: Twin shock adjustable, 117mm wheel travel
- Front Brakes: Single 296mm disc 2 piston caliper
- Rear Brakes: Single 240mm disc 1 piston caliper
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Overall Length: 2090 mm (82.3 inches)
- Overall Width: 720 mm (28.3 inches)
- Overall Height: 1050 mm (41.3 inches)
- Seat Height: 775 mm (30.5 inches)
- Wheelbase: 1430 mm (56.3 inches)
- Ground clearance 145 mm (5.7 inches)
- Fuel Capacity: 18 litres (4.8 USGal)
- Dry weight: (without fluids): 179 kg (394.6 pounds)
- OTHER

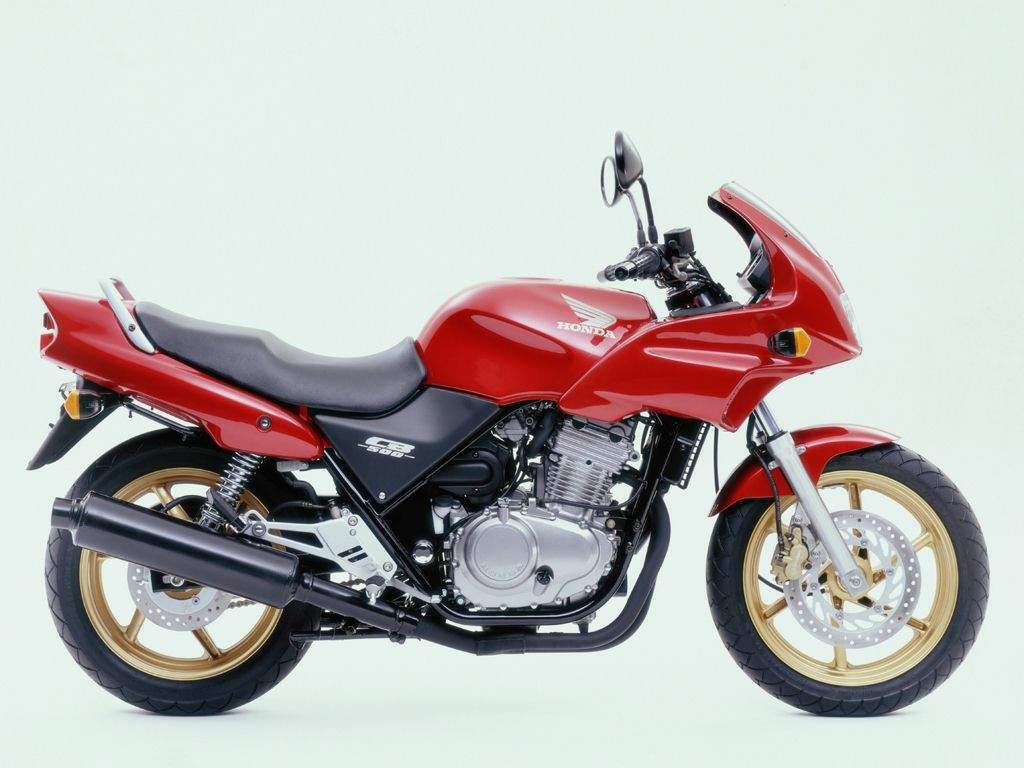

1999 CB500S
Click image to enlarge
2000 Honda CB500S
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valve per cylinder
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks, 115mm wheel travel
- Rear Suspension: Twin shock adjustable, 117mm wheel travel
- Front Brakes: Single 296mm disc 2 piston caliper
- Rear Brakes: Single 240mm disc 1 piston caliper
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Dry-Weight: 179 Kg (394 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER

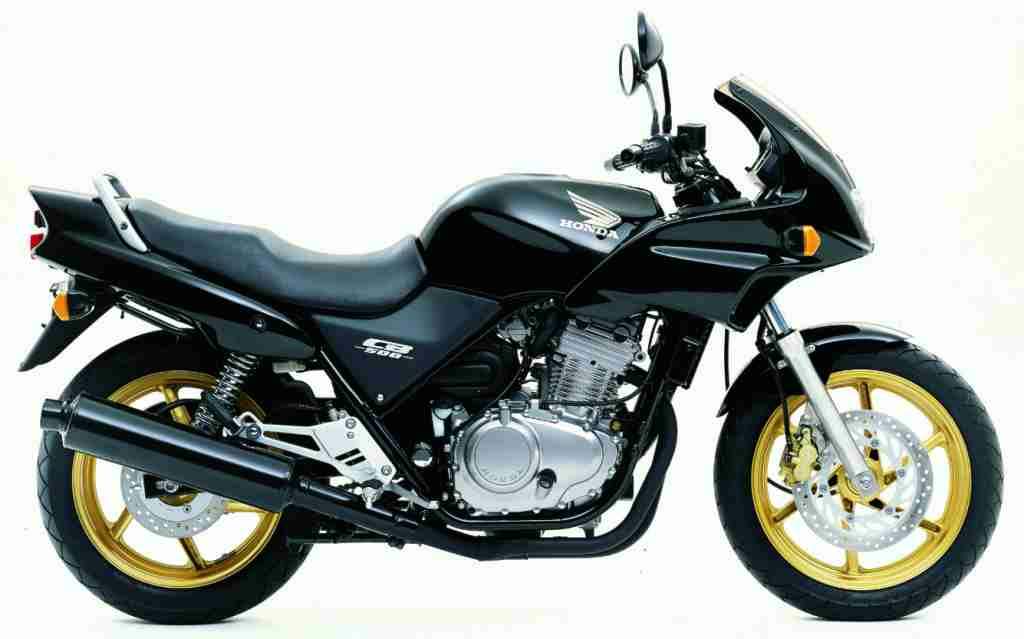

2000 CB500S
Click image to enlarge
2001-03 Honda CB500S
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valve per cylinder
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks, 115mm wheel travel
- Rear Suspension: Twin shock adjustable, 117mm wheel travel
- Front Brakes: Single 296mm disc 2 piston caliper
- Rear Brakes: Single 240mm disc 1 piston caliper
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Dry-Weight: 179 Kg (394 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER
