Honda Magna 750 (VF750C) Motorcycles

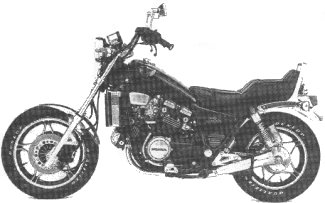

1982 VF750C'82 V45 Magna

ENGINE
- Engine Type: Liquid-cooled in-line V-4
- Valving: 16-Valve DOHC
- Bore and Stroke: 70mm x 48.6mm
- Compression Ratio: 10.5:1
- Fuel delivery: Four 32mm integrated dual-draft type Carburetors
- Exhaust system: Two-into-two
- Ignition system: Transistorized pointless with electronic advance
- Starting system: Electric
- Fuel type: Regular gasoline
DRIVETRAIN
- Transmission: Six-speed including overdrive
- Clutch: Wet, multi-plate, hydraulic controlled
- Final Drive: Shaft
- Wheels: Honda Cast wheels
CHASSIS / SUSPENSION / BRAKES
- Front suspension: Air-assisted leading axle fork with TRAC^TM anti-dive
- Rear suspension: Twin VHD^TM shocks with aluminum reservoirs
- Front Brakes: Dual disc, dual piston caliper
- Rear Brakes: Drum
- Front tire: 110/90H18
- Rear tire: 130/90H16
DIMENSION
- Wheelbase: 1540mm (60.6 in.)
- Overall length: 2190mm (86.2 in.)
- Overall width: 815mm (32.1 in.)
- Seat height: 760mm (29.9 in.)
- Fuel capacity: 14 liters (3.7 GalUS) including 4 liter (1.1 gal) reserve
- Dry weight: 220 kg (483 lb)
OTHER
- Colors:
  - maroon
  - black
- The headlight, instruments, and fenders were chrome
- The gas tank and side covers were the basic color (maroon or black)
- The front disc brake grooves were curved
- The speedometer had a 150 mph (240 kph) limit
- The serial number began JH2RC071*DM100011.

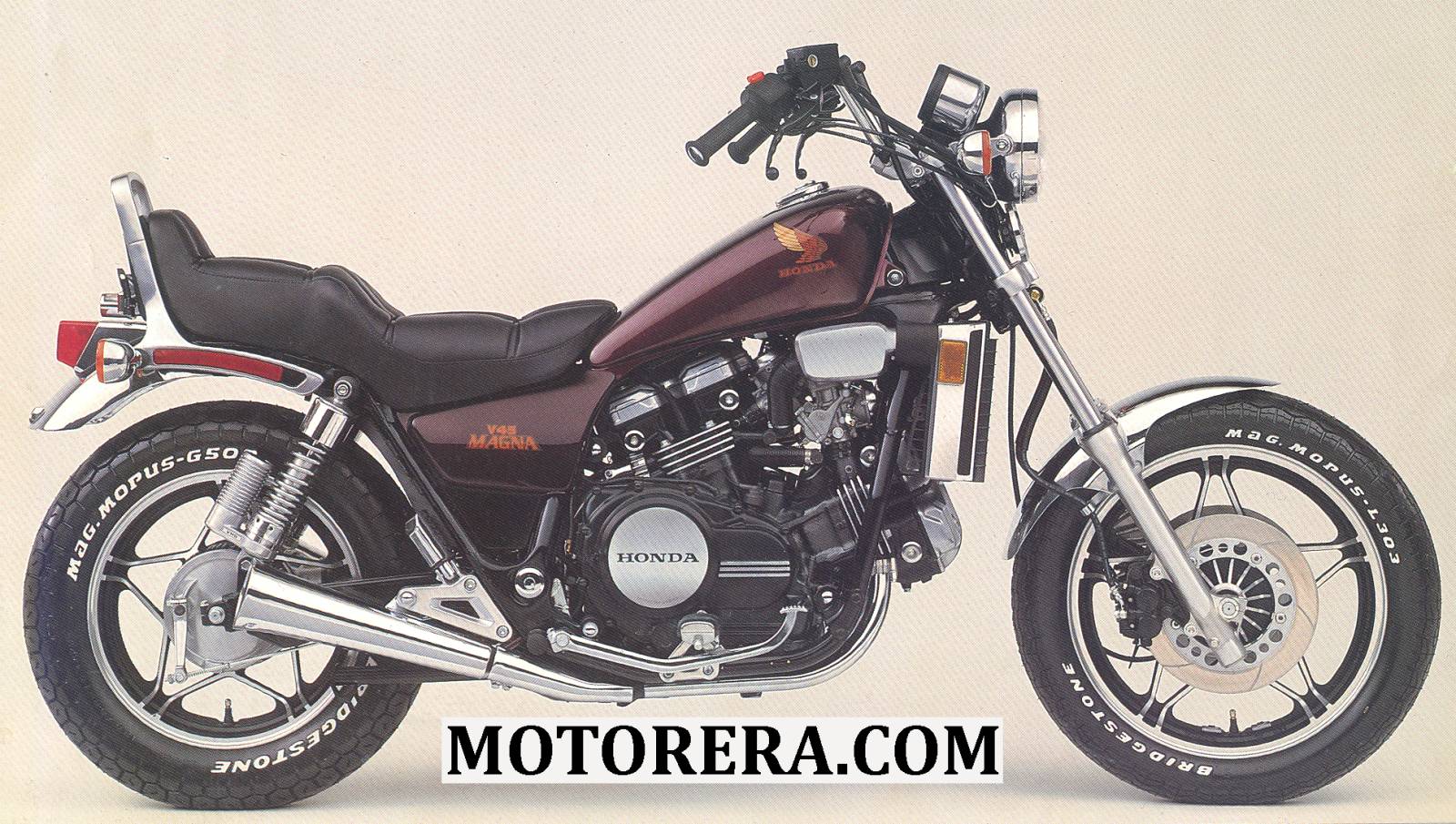

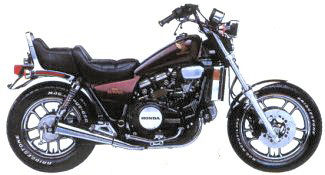

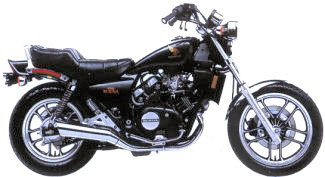

ENGINE
- Engine: 748cc 4-valve thermostatically-controlled, liquid-cooled 90° V-4 DOHC
DRIVETRAIN
- Transmission: Five-speed plus overdrive sixth transmission
- Clutch: Hydraulic
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Rear Suspension: VHD^TM rear shocks with aluminum reservoirs
- Brakes: Dual front disc brakes with twin piston calipers and TRAC^TM anti-dive control system
DIMENSION
- Wheelbase: 1540mm (60.6 in.)
- Seat height: 760mm (29.9 in.)
- Fuel capacity: 14 liters (3.7 gal.) including 4 liter (1.1 gal) reserve
- Dry weight: 219 kg (482.7 lb)
OTHER
- The serial number began JH2RC071*EM100011.

ENGINE
- N/A
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A

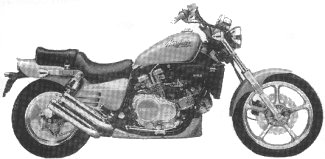

OTHER
The air cleaner cover was wrinkle black with a "V45" emblem
The exhaust system was a 4-into-4
The rear wheel was aluminum disc
The chin fairing was color matched
The "MAGNA" tank decal was silver
The engine was a 748cc DOHC 4-valve liquid-cooled V-4 linked to a 6-speed transmission and a shaft drive
The serial number began JH2RC280*JA100001.

ENGINE
- N/A
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A

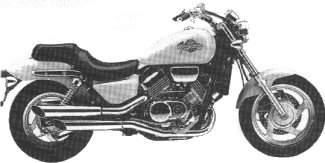

OTHER
- Colors:
  - Candy Glory Red
  - Pearl Shinning Yellow

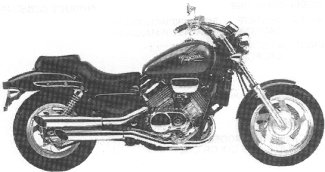

- The serial number began JH2RC430*SM100001.

ENGINE
- N/A
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- It was available in just one color: Black

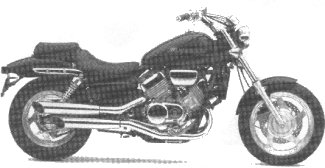

- The serial number began JH2RC430*VM300001.

ENGINE
- N/A
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- It was available in just one color: black

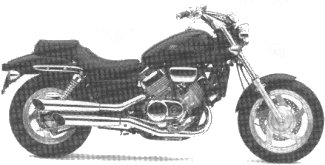

- The serial number began JH2RC430*WM400001.

ENGINE
- Engine: 748cc liquid-cooled, 90-degre, V-four
- Bore and Stroke: 70mm x 48.6mm
- Compression Ratio: 10.8: 1
- Valve Train: DOHC; four valves per cylinder, shim-under-bucket
- Fuel Delivery: Four 34mm downdraft, flatslide CV
DRIVETRAIN
- Transmission: Five-speed, close ratio
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm cartridge fork; 150mm travel
- Rear Suspension: Dual shocks with five-way spring preload adjustability; 95mm travel
- Front Brakes: Single 316mm disc with twin-piston caliper
- Rear Brakes: Drum
- Front Tires: 120/80-17
- Rear Tires: 150/80-15
DIMENSION
- Wheelbase: 1652mm (65.0 in.)
- Seat Height: 710mm (28.0 in.)
- Dry Weight: 229 kg (504.8 lbs.)
- Fuel Capacity: 13.5 litres (3.1 Imp. gal.)
OTHER

ENGINE
- Engine Type: Liquid cooled, 90° V-four
- Displacement: 748cc
- Bore and Stoke: 70mm x 48.6mm
- Compression Ratio: 10.8:1
- Valve Train: DOHC, 4 valve per cylinder, shim under bucket
- Fuel Delivery: Four, 34mm, downdraft, flatslide, CV
DRIVETRAIN
- Transmission: Close-ratio, 5-speed
- Final Drive: "O" ring chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork, 150mm travel
- Rear Suspension: Dual shocks with 5-way spring preload adjustment, 95mm travel
- Front Tire: 120/80V-17
- Rear Tire: 150/80V-15
- Front Brakes: Single 316mm disc with twin piston caliper
- Rear Brakes: Mechanical drum
DIMENSION
- Seat Height: 710mm (28")
- Wheelbase: 1652mm (65.0")
- Dry Weight: 229 kg (505 lb)
- Fuel Capacity: 13.5 liters
OTHER
- Color: Black

ENGINE
- Engine: 748cc liquid-cooled, 90-degree, V-four
- Bore and Stroke: 70mm x 48.6mm
- Compression Ratio: 10.8: 1
- Valve Train: DOHC; four valves per cylinder, shim-under-bucket
- Fuel Delivery: Four 34mm downdraft, flatslide CV
DRIVETRAIN
- Transmission: Five-speed, close ratio
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm cartridge fork; 150mm travel
- Rear Suspension: Dual shocks with five-way spring preload adjustability; 100mm travel
- Front Brakes: Single 316mm disc with twin-piston caliper
- Rear Brake: Drum
- Front Tire: 120/80 V-17
- Rear Tire: 150/80 V-15
DIMENSION
- Wheelbase: 1652mm (65.0 in.)
- Seat Height: 710mm (28.0 in.)
- Dry Weight: 229 kg (505 lbs.)
- Fuel Capacity: 13.5 L (3.0 Imp.gal)
OTHER

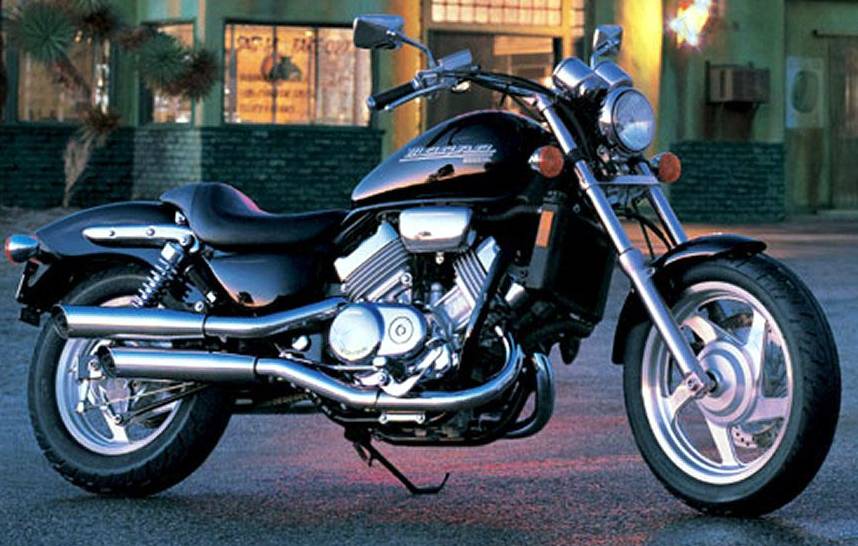

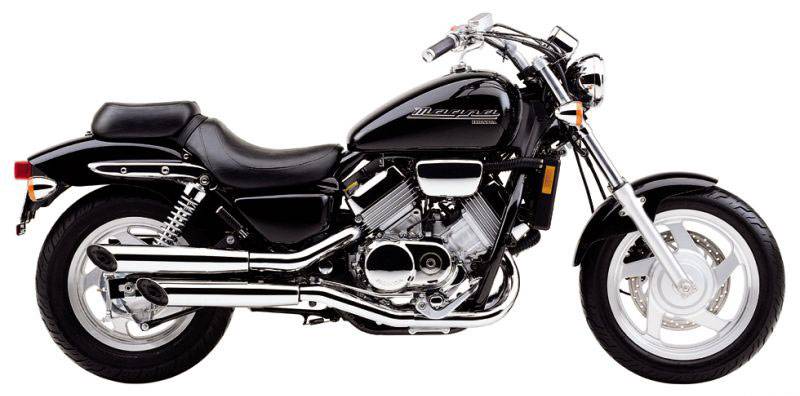

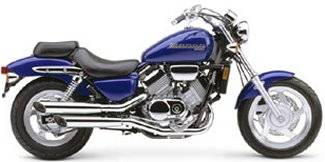

ENGINE
- Engine: 748cc liquid-cooled, 90-degree, V-four
- Bore and Stroke: 70mm x 48.6mm
- Compression Ratio: 10.8: 1
- Valve Train: DOHC; four valves per cylinder, shim-under-bucket
- Fuel Delivery: Four 34mm downdraft, flatslide CV
DRIVETRAIN
- Transmission: Five-speed, close ratio
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm cartridge fork; 150mm travel
- Rear Suspension: Dual shocks with five-way spring preload adjustability; 100mm travel
- Front Brakes: Single 316mm disc with twin-piston caliper
- Rear Brake: Drum
- Front Tire: 120/80-V17
- Rear Tire: 150/80-V15
DIMENSION
- Wheelbase: 1652mm (65.0 in.)
- Seat Height: 710mm (28.0 in.)
- Dry Weight: 229 kg (505 lbs.)
- Fuel Capacity: 13.5 L (3.6 GalUS)
OTHER
- Color: Blue
