Honda CBR954RR Motorcycles

2001 CBR954RR

ENGINE
- Engine: 954cc liquid-cooled inline four-cylinder
- Bore and Stroke: 75mm x 54mm
- Compression Ratio: 11.5: 1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: PGM-FI with automatic enricher circuit
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm (4.7 in.) travel
- Rear Suspension: HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 135mm (5.3 in.) travel
- Front Brakes: Dual full-floating 330mm discs with four-piston calipers
- Rear Brake: Single 220mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50ZR-17 radial
DIMENSION
- Wheelbase: 1400mm (55.1 in.)
- Seat Height: 815mm (32.1 in.)
- Dry Weight: 168kg (370 pounds)
- Fuel Capacity: 18 litres (3.8 Imp. gal.)
OTHER

ENGINE
- Engine Type: Liquid-cooled inline four-cylinder four-stroke
- Displacement: 954cc
- Bore and Stroke: 75.0 x 54.0 mm
- Compression Ratio: 11.5:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
- Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm inverted HMAS^TM cartridge fork with spring-preload, rebound- and compression-damping adjustability, 4.3-inch travel
- Rear Suspension: Pro-Link HMAS^TM single-shock with spring-preload, compression- and rebound-damping adjustability, 5.3-inch travel
- Front brake: Dual full-floating 330mm discs with four-piston calipers
- Rear Brake: Single 220mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50ZR-17 radial
DIMENSION
- Rake: 23.45 degrees
- Trail: 97.0mm (3.8 inches)
- Wheelbase: 1400mm (55.1 in.)
- Seat height: 815mm (32.1 in.)
- Dry weight: 168 kg (370 lb)
- Fuel capacity: 18 liters (4.8 GalUS, including 0.9-gallon reserve)
OTHER
- Colors:

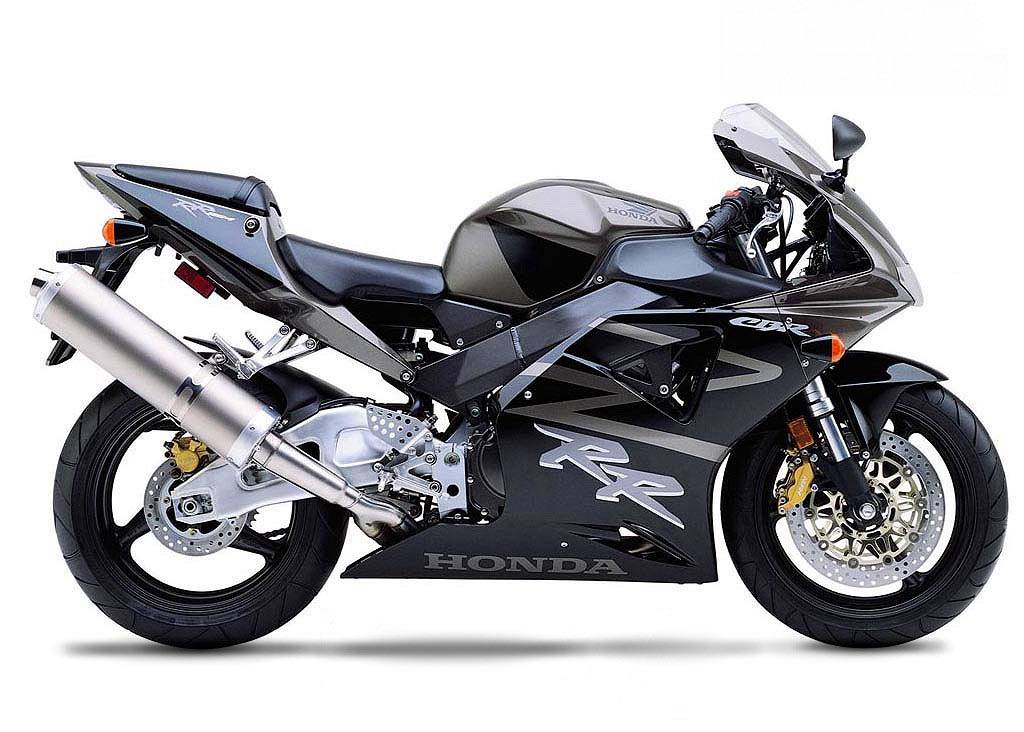

  - Metallic Titanium with Black
  - Black with Red
