1991 GL1500A'91

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • In 1991, Honda brought back the Aspencade name for the Gold Wing
    • It was a black unit with 10th anniversary logos and chrome front brake cover
    • Colors:
      • Candy Wineberry Red
      • Blue Green Metallic
    • Also new for this year was the Special Edition model (i.e., GL1500SE) which came in Pearl Pacific White.

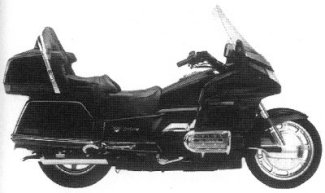

1991 GL1500A Gold Wing Aspencade
1991 GL1500A Gold Wing Aspencade

1992 GL1500A'92 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Cambridge Blue Metallic
    • The serial number began 1HFSC220*NA400003

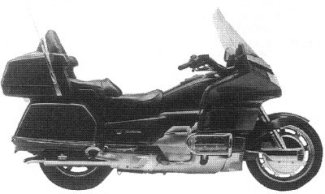

1992 GL1500A Gold Wing Aspencade
1992 GL1500A Gold Wing Aspencade

1993 GL1500A'93 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Cambridge Blue Metallic
      • Black
    • The front shock air caps were standard
    • The cruise control system was updated
    • The rocker arm pivots had needle bearings
    • The serial number began 1HFSC220*PA500001.

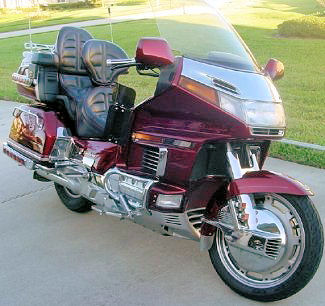

1993 GL1500A Gold Wing Aspencade
1993 GL1500A Gold Wing Aspencade

1994 GL1500A'94 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Pearl Atlantis Blue
      • Black-Z
    • The lower cowling was in the body color
    • The serial number began 1HFSC220*RA600001.

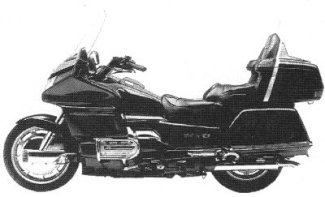

1994 GL1500A Gold Wing Aspencade
1994 GL1500A Gold Wing Aspencade

1995 GL1500A'95 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Pearl Royal Magenta
      • Pearl Sierra Green
    • The suspension had a different calibration
    • There was a special 20th anniversary badging
    • The trunk and saddlebag inner liners were upgraded
    • The serial number began IHFSC220*SA700001.

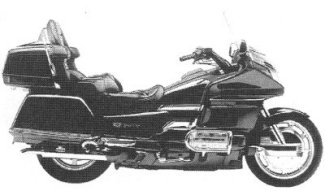

1995 GL1500A Gold Wing Aspencade
1995 GL1500A Gold Wing Aspencade

1996 GL1500A'96 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Pearl Royal Magenta
      • Pearl Sierra Green
      • Pearl Sparkling Blue
    • The full-logic audio system was upgraded
    • It had electric reverse; an on-board air compressor for adjusting the ride of the rear suspension
    • The engine was a liquid-cooled, horizontally opposed 6-cylinder displacing 1520 cc
    • Bore and Stroke: 71 mm x 64 mm
    • Compression Ratio: 9.8:1
    • The valve system was a belt-driven SOHC with self-adjusting hydraulic lifters
    • There were twin carburetors (36mm diaphragm-type CV)
    • The ignition system was a computer controlled electronic device
    • The starting system, of course, was electric start with no kick-start pedal
    • The transmission was a 5-speed with an electric reverse
    • Final Drive: was supplied by a shaft
    • The front suspension was a 41 mm fork with TRAC anti-dive and 140 mm travel
    • The rear suspension had dual shocks of which one was air adjustable from the dash and 150 mm travel
    • The front tires were 130/70H-18 while the back were 160/80H-16
    • The front brakes featured dual 296 mm discs with twin piston calipers
    • The rear brake had a single 316 mm disc with twin piston caliper which was integrated with one front disc
    • The seat height was 740 mm (29.1")
    • The wheelbase was 1690 mm (66.5")
    • The dry weight was 370 kg (816 lb)
    • The fuel capacity was 24 liters (5.3 Imp. Gal., 4.4 US Gal.)
    • The serial number began 1HFSC220*TA800001.

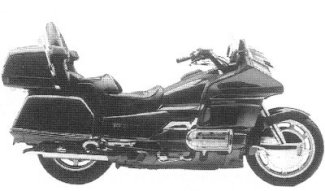

1996 GL1500A Gold Wing Aspencade
1996 GL1500A Gold Wing Aspencade

1997 GL1500A'97 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Pearl Sonoma Green
      • Pearl Glacier White
    • The handlebar switches and controls used the internationally approved symbols
    • Many of the transmission and clutch parts were the same as the "Valkyrie" parts
    • The serial number began 1HFSC220*VA900001.

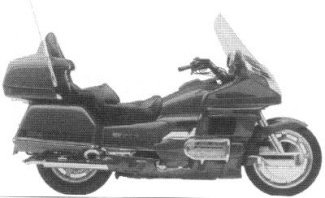

1997 GL1500A Gold Wing Aspencade
1997 GL1500A Gold Wing Aspencade

1998 GL1500A'98 Gold Wing Aspencade

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Colors:
      • Candy Spectra Red
      • Black
    • The cylinder head covers were new and the logo emblems had new designs
    • The speedometer and tachometer have white faces
    • The serial number began 1HFSC220*WA000001.

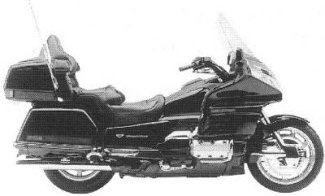

1998 GL1500A Gold Wing Aspencade
1998 GL1500A Gold Wing Aspencade

1999 GL1500A Gold Wing Aspencade

  • ENGINE
    • Engine Type: 1520 cc, 4 Stroke - Liquid Cooled - Boxer Six
    • Bore and Stroke: 71 mm x 64 mm
    • Valves: 2 valves/cylinder
    • Horsepower: 100 hp (74.6 kW) @ 5200 rpm
    • Maximum Torque: 150 Nm (110.6 ft. lbs) @ 4000 rpm
  • DRIVETRAIN
    • Transmission: type: 6 speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Tire: 130/70-18
    • Rear Tire: 160/80-16
    • Front Brakes: dual 296 mm discs with 2-piston calipers
    • Rear Brakes: single 316 mm disc with 2-piston calipers
  • DIMENSION
    • Seat Height: 765 mm (30.1 inches)
    • Wheelbase: 1690 mm (66.5 inches)
    • Fuel Capacity: 23 litres (6.1 Gal)
    • Dry weight: (without fluids): 366 kg (806.9 pounds)
  • OTHER

2000 GL1500A'98 Gold Wing Aspencade

  • ENGINE
    • Engine: 1520cc liquid-cooled horizontally-opposed six-cylinder
  • DRIVETRAIN
    • Transmission: five-speed constant-mesh with overdrive fifth gear & electric reverse
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork with TRAC anti-dive 140mm of travel
    • Rear Suspension: air-assisted (right-hand only) dual shocks; 105 mm of travel
    • Front Brakes: Dual discs with twin-piston calipers
    • Rear Brakes: single disc with twin-piston calipers integrated with one front disc
    • Front Tire Size: 130/70H-18
  • DIMENSION
    • Seat Height: 740 mm (29.1 in.)
    • Fuel Capacity: 24 litres (5.3 imp.gal.)
    • Dry Weight: 365 kg. (803 lb.)
  • OTHER

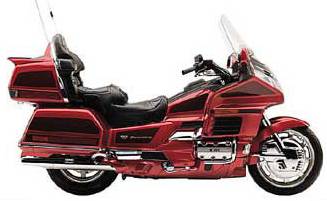

2000 GL1500A Gold Wing Aspencade
2000 GL1500A Gold Wing Aspencade
